Alfa R36AH WPS Wireless Router 2.4GHz, 802.11n, 1x Internal Antenna, 1x Detachable High Gain Antenna, 1x USB Port, for Alfa USB WiFi Adapter, Windows, MacOS

Product Description

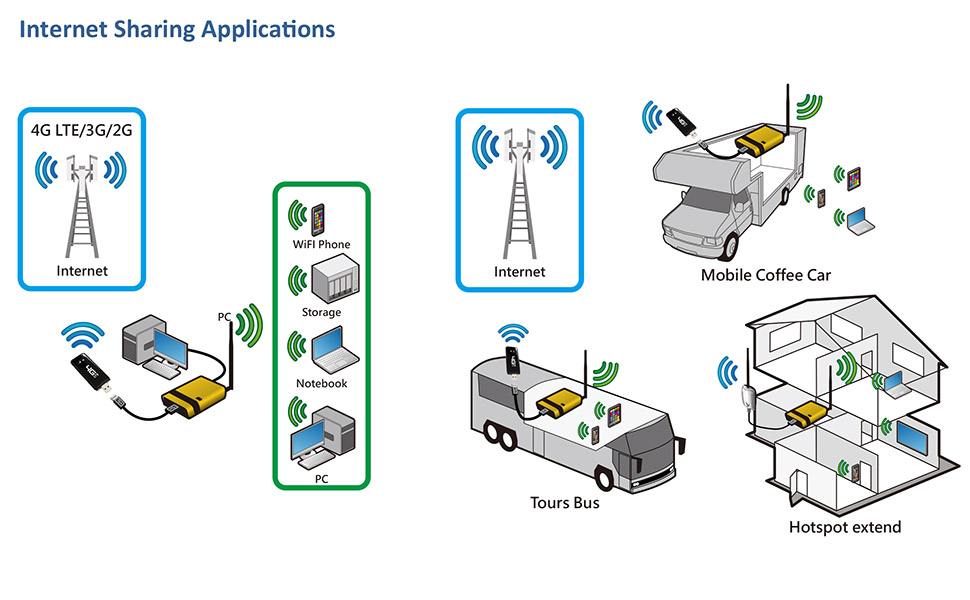

Internet Sharing Applications

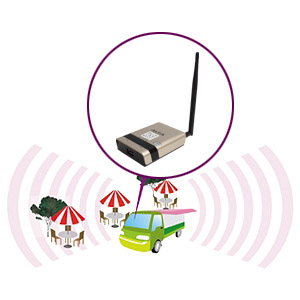

Mobile Coffee Car 4G modem extender mode

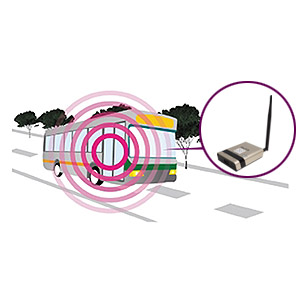

Tours Bus 4Gmodem extender mode

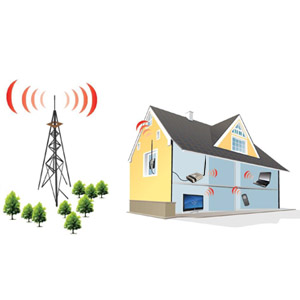

Hotspot extend WiFi USB extender mode

Specifications

Chipset QCA9531 Standard IEEE 802.11n/b/g (2×2) Frequency 2.142 – 2.484GHz Flash/SDRAM 16 MB / 128 MB Data Rate 802.11n: up to 300Mbps; 802.11g: up to 54Mbps; 802.11b: up to 11Mbps Channel Width 20 / 40MHz Antenna 1x detachable antenna; 1x internal antenna LED Indicated PWR, LAN, WAN, USB,WLAN Power requirement DC Jack 12V; Passive PoE 12-24V Security 64/128bit WEP; WPA(TKIP with IEEE 802.1x); WPA2(AES with IEEE 802.1x); WPA Mixed 802.1x authentication RF Performance(2 streams/±2dB) Tx – 23dBm; RX -11b: -96@1M; RX – 11g: -77@54M; RX – 11n: -90@HT20 Operation Temperature -20°C ~ 60°C Storage Humidity 10% ~ 90% (Non-condensing) Dimension(mm) 93 x 70 x 26 mm Weight 74g

Supported USB Device

WiFi USB:

AWUS036NHA; AWUS036NH; AWUS036NEH; AWUS036ACM; AWUS036ACHM; Tube-UNA; Tube-UN; Tube-UAC2

4G USB modem:

Alfa Onyx4GU; Tube-U4G; Tube-U4Gv2

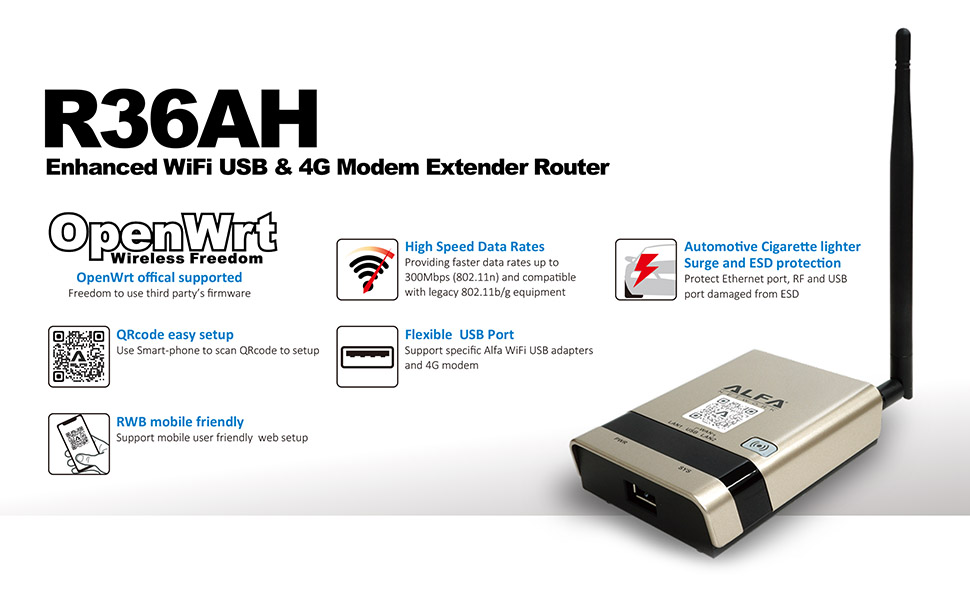

The ALFA R36AH v2 is a special high speed 2.4 GHz Wi-Fi router with USB port that allows you to share the long range Wi-Fi connection of an ALFA Tube-UAC2 Dual Band Outdoor USB WiFi receiver, or it’s indoor version AWUS036ACHM.

Boost and share a 5 GHz WiFi signal, or a 2.4 GHz signal with multiple devices at once.

Perfect for extending a WiFi signal into an RV at a campground (additional components required). This device cannot repeat a WiFi signal without a compatible ALFA USB WiFi receiver.

ALFA R36AH v2 comes with firmware to support ALFA’s dual band WiFi receiver models Tube-UAC2 and AWUS036ACHM. This firmware is not compatible with the ALFA R36A routers.

To use this device to share a Wi-Fi signal, you will also need one of the above devices or an older model like Tube-UNA or AWUS036NH. Then simply connect your computer to the R36AH via ethernet cable or Wi-Fi connection for a one-time configuration and setup. Connect the ALFA USB adapter to the R36AH, and using Wi-Fi scanning software built-into the R36AH, you can scan for and connect to available wireless networks in your area. Once the R36AH has connected to a network, you will be prompted to name and password protect your own new local Wi-Fi network, offering any device within a few hundred feet a strong Wi-Fi connection.

This is operating system independent and can be used with any computer or tablet with Microsoft Windows, Apple Mac OS, or iPad/tablet.

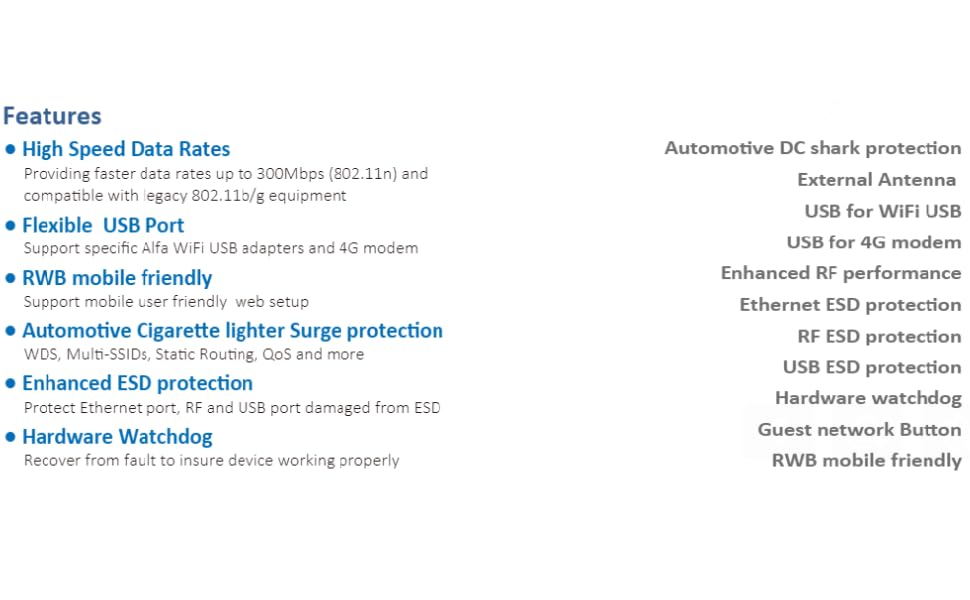

RWB mobile friendly: Support mobile user friendly web setup.
Automotive Cigarette lighter: Surge protection protect vehicle inrush current up to 36VDC.
Enhanced ESD protection: Protect Ethernet port, RF and USB port damaged from ESD.
Automotive Cigarette lighter: Surge protection protect vehicle inrush current up to 36VDC.
Hardware Watchdog: Recover from fault to insure device working properly.
